Pasif AC10™ EMI Power Filter
The Pasif AC10™ is a high-performance EMI power filter featuring integrated IEC connectors. The power filter module is designed to provide superior RF isolation while allowing convenient, seamless access to AC power. Engineered for applications requiring stringent EMI suppression, it is ideal for desktop RF Shielded Test Enclosures, RF Shielded Racks, Anechoic Chambers, and RF Screen Rooms. Built with a rugged aluminum housing and advanced filtering technology, it delivers exceptional performance with at least 80dB of RF rejection from 125MHz to 40 GHz and >100dB from 1.5GHz to 40GHz.
Features:
- Universal IEC connectors for global compatibility
- Precision-engineered milled aluminum construction with nickel plating for superior shielding
- High-performance RF filtering: >80dB from 125MHz and >100dB from 1.5GHz to 40GHz
- Rated for 250VAC at 10 Amps with integrated safety fuse for reliable operation
|
EMI Filter Performance
Shielding Effectiveness
>100dB from 10kHz to >20GHz (typical)
Insertion Loss
>80dB from 125MHz to 40GHz (typical)
>100dB from 1.5GHz to 40GHz (typical)
Electrical Performance
Voltage
100VAC to 250VAC; 350VAC Max.
Current
10A Max.
Power Source
Single Phase; 50/60Hz
Safety
10A Fuse on C14 Input
Safety and Regulatory
File Number
TBD
Standards
TBD
Environmental
- Operating Temperature: 0ºC - 40ºC (32ºF - 104ºF)
- Humidity: 5% - 90% (non-condensing)
Construction
Filter Housing
Aluminum w/Electroless Nickel Plating
Dimensions
3.20" x 3.20" x 3.31"
Mounting
- 2.25-16 UN Threaded Pipe, 1.5” Length
- Aluminum Chem-Filmed Flange Nut
Connectors
- IEC 60320 C-14 (Input)
- IEC 60320 C-13 (Output)

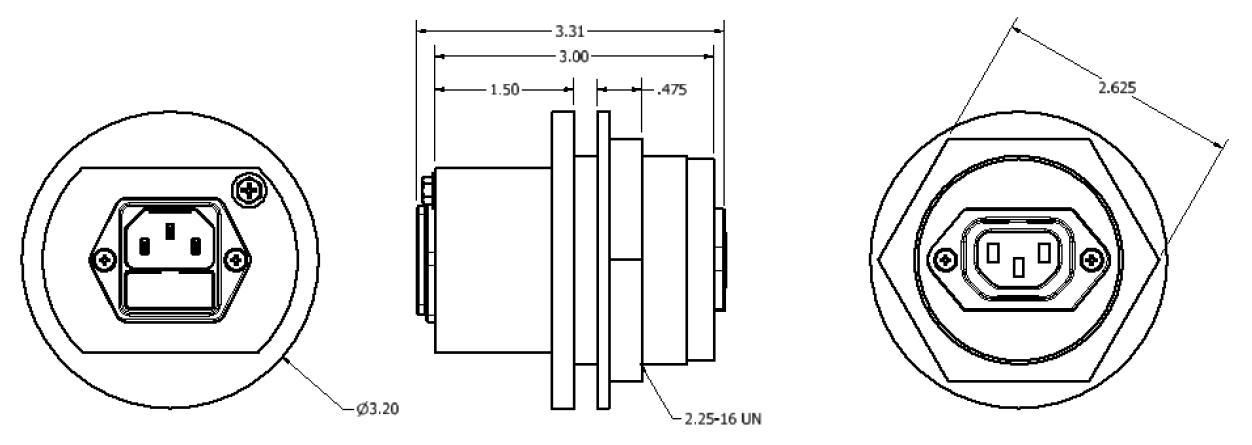

Drawings
Pasif AC10
Documents
Warranty
Pasif™ EMI filters come with a two-year warranty.
|
|
|
|
