Streaming Audio Ethernet EMI Filter
The ACTIV AUDIO™ electromagnetic interference (EMI) Filter is the most advanced and effective EMI filter for streaming audio available on the market. Every piece of network equipment generates EMI -- more commonly known as "noise." Ethernet is designed to be resistant to noise and communicates very reliably regardless of the presence of noise. The weak point in any streaming audio system is where the digital signal is converted to an analog signal. Noise can piggyback on the digital signal and jump (or "couple") to the analog side resulting in audible "hiss" or subtle artifacts.
Utilizing proprietary Digital Signal Processing (DSP) techniques, the ACTIV AUDIO™ filter faithfully reproduces streaming audio packets without unwanted or extraneous noise. The filter rejects unwanted signals from 50Hz and below all the way up to 40GHz at better than 100dB -- that's a noise reduction of 99.99999999%! Military grade passive filtering technology further ensures that digital music packets traverse the filter in complete and absolute isolation from each other and the outside world. Signal lines are balanced perfectly throughout the multilayered cards to avoid disturbing the fast rise times required by digital square wave signals. The result is a pristine digital output far surpassing the filtering capabilities of any other EMI filters.
Each ACTIV AUDIO™ Filter is constructed with the highest grade electrical components, starting with a super accurate, ultra stable high speed crystal clock which drives the specially developed DSP circuitry and Ethernet chipset. To protect the sensitive circuitry of the filter, incoming power is also filtered, conditioned and protected against deviations from specified voltage and current levels. The circuit cards are then mounted in a sleek, protective housing machined from solid aluminum stock. The housing not only provides physical protection to the filter components, but is also an integral contributor to the filter?s effectiveness. The unique structure of the housing effectively disrupts undesirable emissions from propagating through the filter while simultaneously providing low impedance pathways for interference to be directed out of the filter.
** THIS FILTER WILL NOT WORK ON RF SHIELDED ENCLOSURES OR CHAMBERS **
CHECK OUT OUR ACTIV 10G FOR THOSE APPLICATIONS
|
Pricing
Continental United States
| ACTIV AUDIO: |
US$ 1,950.00 |
| Shipping and Handling: |
US$ 35.00 |
|
| TOTAL |
US$ 1,985.00 |
Note: California Residents will be Charged Sales Tax
Worldwide
| ACTIV AUDIO: |
US$ 1,950.00 |
| Shipping and Handling: |
Not Included |
Note: International Orders Require a UPS or FEDEX Account. No other forms of shipping are accepted.
EMI Filter Performance
Insertion Loss
100dB from 0.1kHz to 40GHz
Insertion Loss performance measured using a method based on MIL-STD-220B
Radiated and Conducted Emissions
- Exceeds FCC Part 15 A, B
- Exceeds EN 55022 Class A, B
- Exceeds MIL-STD-461 RE102
- Exceeds MIL-STD-461 CE102
Network Performance
Auto MDI/MDI-X Configuration
Automatically detects and configures the twisted pair port on the converter to the correct MDI or MDI-X configuration.
Auto Negotiation
Automatically configures 10Mbps, 100Mbps, 1Gbps, 2.5Gbps, 5Gbps, 10Gbps
Hot Pluggable
Can be plugged in/out without affecting the filter or other links.
Auto Link Restoration
Automatically re-establishes the network link after a link loss.
Communication Standards
- IEEE802.3 10Base-T (Ethernet)
- IEEE802.3u 100Base-TX (Fast Ethernet)
- IEEE802.3ab 1000Base-T/TX (Gigabit Ethernet)
- IEEE802.3bz 2.5GBase-T/5GBase-T (2.5G/5G Ethernet)
- IEEE802.3an 10GBase-T (10G Ethernet)
Safety and Regulatory
UL File Number
E362686
Standards
- UL 62368-1
- CSA C22.2 No. 62368-1
- EN 62368-1
- IEC 62368-1:2020+A11:2020
- RoHS 2011/65/EU
- RoHS 2015/863
- REACH SVHC
- CA Prop 65
- FCC 47 CFR Part 15.247*AEI
- ICES-003:2020 Ed. 7
- EN 55032:2015+A11
- EN 55035:2017+A11
- EN 61000-3-2:2014
- EN 61000-3-3:2013+A1;A2
- EN 6100-4-2,3,4,5,6,8,11
Environmental
- Operating Temperature: 0ºC - 40ºC (32ºF - 104ºF)
- Humidity: 5% - 90% (non condensing)
Construction
Filter Housing
Aluminum w/Electroless Nickel Plating
Power Requirements
- Input: 100-240VAC; 50/60Hz
- Output: +12V / 2000 mA minimum
(Marked "LPS" or "Class 2" Only)
- DC plug type: 2.1mm x 5.5mm; center positive
Dimensions
5.77" x 3.00" x 0.93""
Connectors
- RJ-45 8P8C Jack (x2)
- 2.1mm x 5.5mm DC Barrel Jack
Indicator LEDs
Power: Red When Power is Present
Link Status (Input/Output)
- 10Mbit - Red
- 100Mbit - Green
- 1Gbit - Dark Blue
- 2.5Gbit - Yellow
- 5Gbit - Purple
- 10Gbit - Light Blue

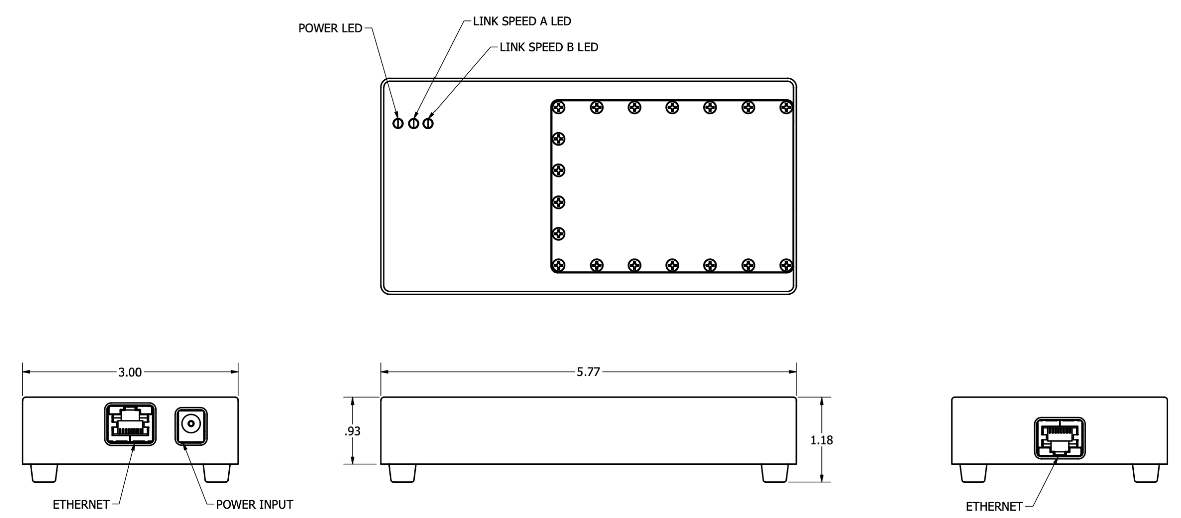

Drawings
ACTIV AUDIO
Documents
ACTIV AUDIO Owners Guide
ACTIV AUDIO Data Sheet
Warranty
ACTIV™ brand Ethernet EMI filters come with a two year warranty.
A Note About the GigaFOILv4-INLINE
The ACTIV AUDIO™ EMI Filter replaces the groundbreaking GigaFOILv4–-INLINE™ as the highest grade EMI filter available for streaming audio. However, the GigaFOILv4-INLINE™ is still available while our stock lasts.
Click here to purchase the GigaFOILv4-INLINE™
|
|
|
|
