Pasif USB 2.0™ EMI Filter
The Pasif USB 2.0™ electromagnetic interference (EMI) Filter is the most effective passive, unpowered EMI filter for Universal Serial Bus available on the market. The filter is designed to pass signals at Low Speed (LS - 1.5Mb/s), Fast Speed (FS - 12Mb/s), and High Speed (HS - 480Mb/s) while simultaneously blocking all unwanted signals at better than 80dB starting from 700MHz and better than 90dB starting at 750MHz up to 40GHz. Military-grade passive filtering technology ensures that USB signals traverse the filter in complete and absolute isolation. The result is a pristine digital output far surpassing the filtering capabilities of other passive USB 2.0 filters.
Each Pasif USB 2.0™ EMI Filter is mounted in a rugged protective housing machined from solid aluminum stock. The housing provides both physical protection and enhances EMI filtering effectiveness. The unique structure of the housing disrupts undesirable emissions while directing interference away.
Features:
- Military-grade passive filtering techniques for clean and sharp signals
- Highest quality electrical components ensure long service life
- Rugged protective housing ensures reliability in any environment
- Passive electrical design allows flexibility in location and operation
|
EMI Filter Performance
Shielding Effectiveness
>100dB from 10kHz to >800MHz (typical)
>80dB from 800MHz to >20GHz (typical)
Insertion Loss
>80dB from 700MHz to 40GHz (typical)
>90dB from 750MHz to 40GHz (typical)
Electrical Performance
Data Line Impedance
90 Ω Typical
Supported Data Speeds
- Low Speed (LS) - 1.5Mb/s
- Fast Speed (FS) - 12Mb/s
- High Speed (HS) - 480Mb/s
Environmental
- Operating Temperature: 0ºC - 40ºC (32ºF - 104ºF)
- Humidity: 5% - 90% (non-condensing)
Construction
Filter Housing
Aluminum w/Electroless Nickel Plating
Dimensions
3.55" x 2.20" x 0.86"
Mounting
- 1-20 UNEF-2A Mounting Stub for Threaded Penetration
- 1" NPS threaded penetration w/brass mounting flange nut and mesh gasket
- 1", 3", 9", 12" or custom length threaded penetration
Connectors
- USB 2.0 Type B Female (Input)
- USB 2.0 Type A Female (Output)
Indicator LEDs
Power (Red) – Lit when power from host is present

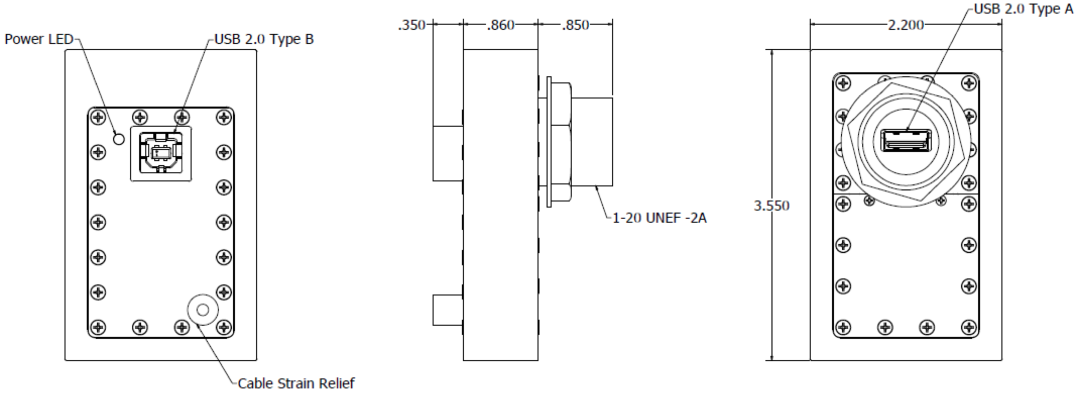

Drawings
Pasif USB 2.0
Documents
Warranty
Pasif™ EMI filters come with a two-year warranty.
|
|
|
|
